Analogue Meters

Analogue Meters

Class 1.596mm / 72mmVoltmeter / Ammeter

Designed to measure AC current or voltage, these meters indicate true RMS values and are substantially independent of system waveform. Scales are calibrated down to 20%, and ammeters can have overload scales of ×2, ×3, ×5 or ×6 for motor start duty. Ammeters can be supplied for use with −/1A or −/5A current transformers, whilst voltmeters can be scaled for use with voltage transformers. Available as voltmeter, ammeter and maximum demand meter.

Enquire Now All Products

Durable

Robust 96×96 mm and 72×72 mm panel instruments for industrial switchgear.

Reliable

±1.5% accuracy (direct) / ±2.5% (via CT/VT); CE compliant panel instruments.

Efficient

Ammeter, voltmeter and max demand variants; direct or CT/VT input for all configurations.

Technical Data

Specifications

Product Variants

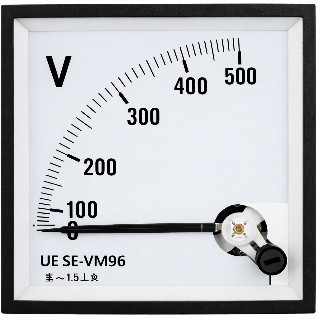

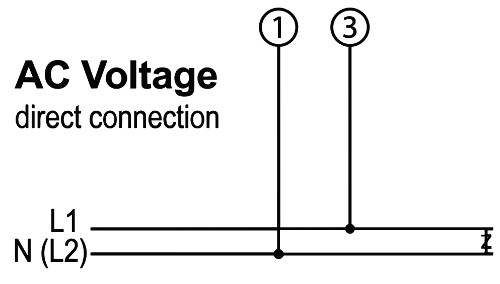

Voltmeter

Product	SE-VM96
Range	AC 0 − 500V
Input	AC 100V − 500V
Meter Size	96mm × 96mm
Accuracy	±1.5%

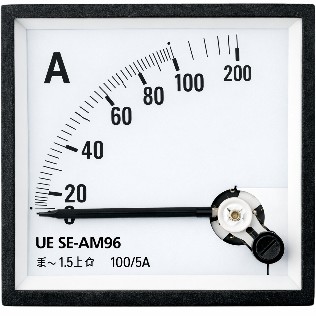

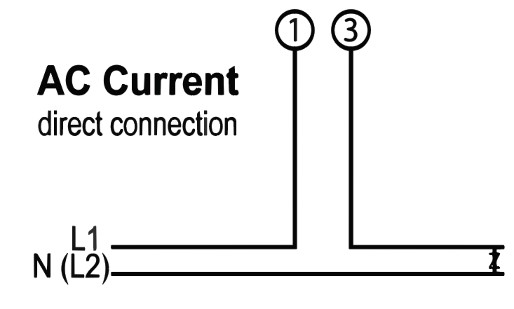

Ammeter

Product	SE-AM96
Range	AC 0 − 6000A
Input	AC 0 − 5A
Meter Size	96mm × 96mm
Accuracy	±1.5%

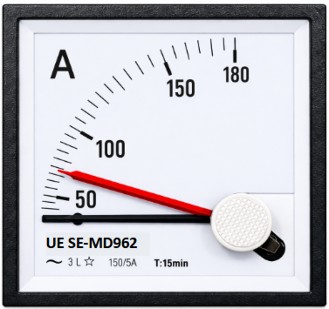

Maximum Demand Meter (2 pointers)

Product	SE-MD962
Range	AC 0 − 6000A
Input	AC 0 − 5A
Meter Size	96mm × 96mm
Accuracy	±3%

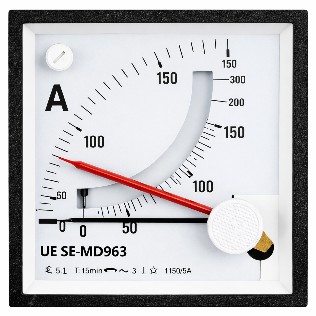

Maximum Demand Meter (3 pointers)

Product	SE-MD963
Range	AC 0 − 6000A
Input	AC 0 − 5A
Meter Size	96mm × 96mm
Accuracy	±3%

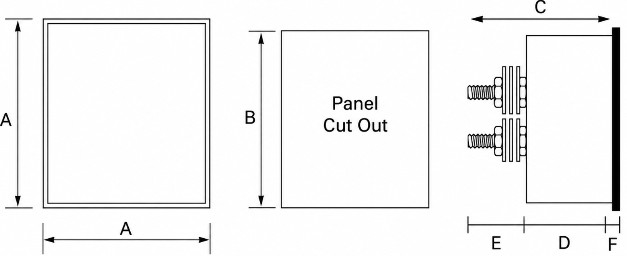

Model Dimensions

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)
SE-96	96	92	74	43	26	5
SE-72	72	68	74	43	26	5

SE-96 & SE-72 Performance Ratings

SPECIFICATIONS
Voltmeter Range (Direct)	Class 1.5 — 5V to 750V
Voltmeter Range (Ext. Resistor)	Class 2.5 — 500V to kV / µA to mA
Ammeter Range (Direct)	Class 1.5 — 500mA to 50A
Ammeter Range (Ext. CT)	Class 2.5 — 5A to 10kA / 5A / 1A
Accuracy	Class 1.5 (direct) / Class 2.5 (external)
Measurement	True RMS, waveform-independent
Scale Calibration	Down to 20%
Overload Scale	×2, ×3, ×5, ×6 (motor start duty)
CT Compatibility	−/1A or −/5A current transformers
