Customised Comb Busbar

1P / 2P / 3P100A RatedCopper

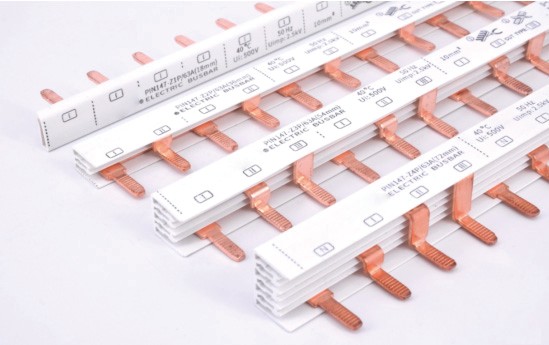

Customised comb busbar designed for efficient and safe power distribution in electrical panels. Manufactured from high-conductivity copper and insulated with flame-retardant material, it ensures reliable performance and easy installation for DIN rail mounted MCBs. Available in PIN type (SE 1PP / SE 2PP / SE 3PP) and Fork type (SE 1PF / SE 2PF / SE 3PF) configurations for 1-pole, 2-pole and 3-pole breaker banks.

Enquire Now All Products

Durable

High-conductivity copper conductors with flame-retardant material for long service life.

Reliable

Tested to 100A reference current. Compatible with standard DIN rail MCBs and distribution boards.

Efficient

Snap-on installation — no tools required. Pin and fork types for flexible panel wiring configurations.

Technical Data

Specifications

Customized to your requirements

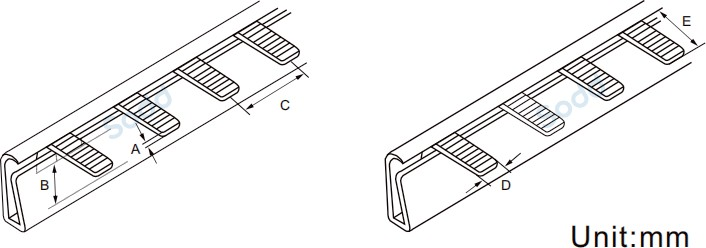

1-Pole (SE-CB1P)

MODEL	POLE NUMBER	A	B	C	D	E	CROSS-SECTIONAL AREA	REFERENCE CURRENT
SE-CB1P	1P	1.4	7	18	4	11.5	10mm²	63A
SE-CB1P	1P	1.5	9	18	4	11.5	13mm²	80A
SE-CB1P	1P	1.5	10.5	18	4	11.5	16mm²	100A
SE-CB1P	1P	1.9	12.5	17.8	4	13	25mm²	125A

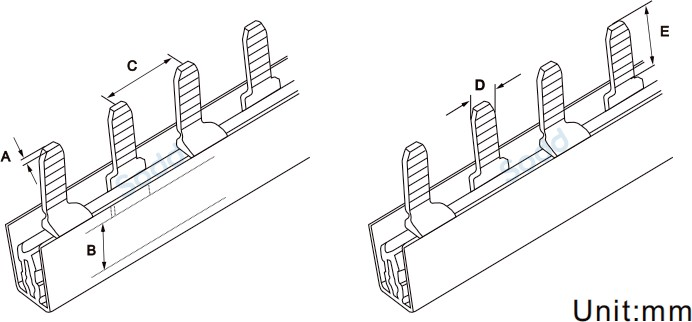

2-Pole (SE-CB2P)

MODEL	POLE NUMBER	A	B	C	D	E	CROSS-SECTIONAL AREA	REFERENCE CURRENT
SE-CB2P	2P	1.4	7	18	4	11.5	10mm²	63A
SE-CB2P	2P	1.5	9	18	4	11.5	13mm²	80A
SE-CB2P	2P	1.5	10.5	18	4	11.5	16mm²	100A
SE-CB2P	2P	1.9	12.5	17.8	4	13	25mm²	125A

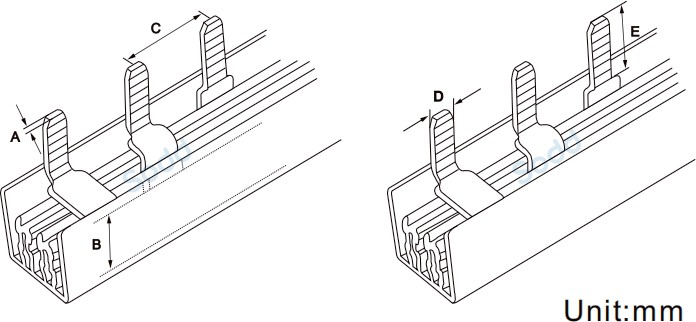

3-Pole (SE-CB3P)

MODEL	POLE NUMBER	A	B	C	D	E	CROSS-SECTIONAL AREA	REFERENCE CURRENT
SE-CB3P	3P	1.4	7	18	4	11.5	10mm²	63A
SE-CB3P	3P	1.5	9	18	4	11.5	13mm²	80A
SE-CB3P	3P	1.5	10.5	18	4	11.5	16mm²	100A
SE-CB3P	3P	1.9	12.5	17.8	4	13	25mm²	125A

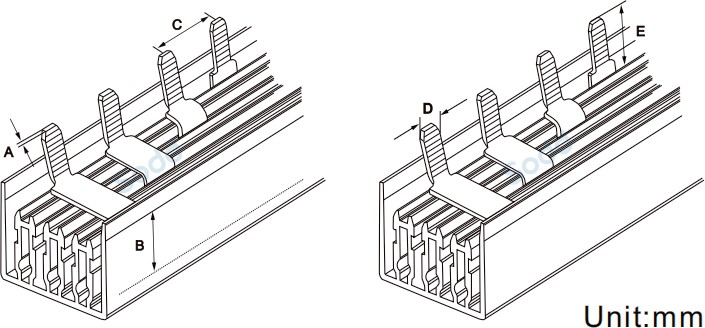

4-Pole (SE-CB4P)

MODEL	POLE NUMBER	A	B	C	D	E	CROSS-SECTIONAL AREA	REFERENCE CURRENT
SE-CB4P	4P	1.4	7	18	4	11.5	10mm²	63A
SE-CB4P	4P	1.5	9	18	4	11.5	13mm²	80A
SE-CB4P	4P	1.5	10.5	18	4	11.5	16mm²	100A
SE-CB4P	4P	1.9	12.5	17.8	4	13	25mm²	125A

Available in both “Pin Type” and “Fork Type” to suit various application requirements.

Key Benefits

Features

PIN and Fork-type connection variants
1-pole, 2-pole and 3-pole configurations
High-conductivity copper conductor
Flame-retardant PVC insulation
Rated reference current 100A
Anti-acid, anti-oxidation surface treatment
Compatible with standard DIN Rail MCBs and breakers

Typical Use Cases

Applications

DIN Rail MCB assemblies
Distribution board busbars
Consumer unit wiring
Industrial control panel power distribution
Main switchboard MCB banks
LV panel construction

Specifications

Features

Applications

Related Products

Perforated DIN Rail

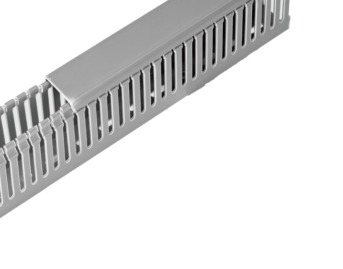

Halogen Free Cable Trunking
