Fuse Holder

Fuse Holder

IEC 60269Up to 100ASafety Lock

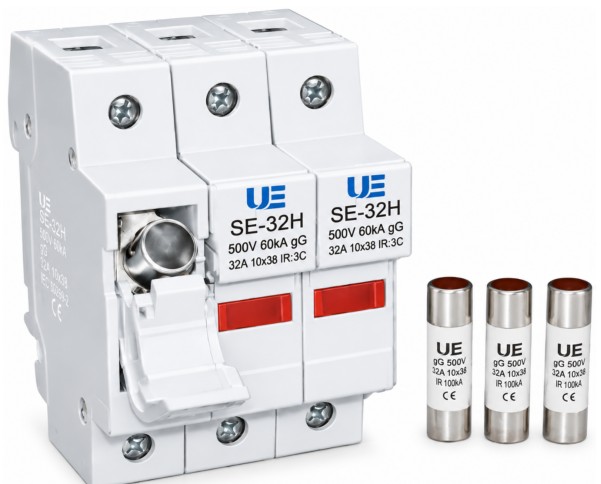

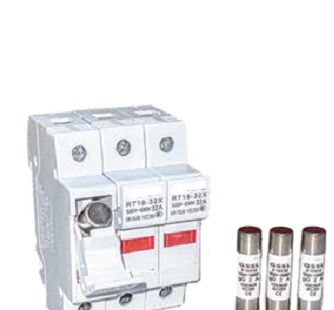

Fuse holders designed to support cylindrical fuses from 10×38mm to 22×58mm sizes. Operate reliably under the heat generated by rated current and can withstand prospective short-circuit currents up to 100kA. When configured in a multi-phase combination, they can also function as a fuse disconnecting switch. The SE model features a safety locking mechanism that secures the fuse carrier in the disconnected position, preventing incorrect operation.

Enquire Now All Products

Durable

Rated for harsh industrial environments with high short-circuit withstand capacity up to 800kA.

Reliable

Compliant with IEC 60269 and IEC 60947-3 standards. Safety locking mechanism prevents incorrect operation.

Efficient

Quick-change fuse carrier design. Supports both 10×38mm and 22×58mm cylindrical fuse sizes.

Technical Data

Specifications

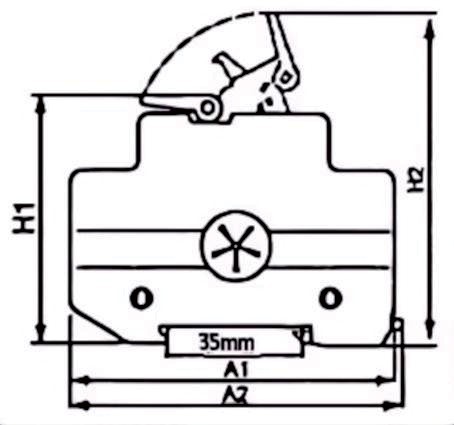

Fuse Holder Dimensions

Model	A1 (mm)	A2 (mm)	H1 (mm)	H2 (mm)	B (mm)	Standard
SE-32H	80	N/A	62	80	18	IEC 60269-1
SE-125H	125	130	76	103	35	IEC 60269-4

Technical Data — Fuse Rating

Dimension	Rated Voltage	Rate Current	Breaking Capacity
10×38	500V	1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 16A, 20A, 25A, 32A	100kA
10×38	690V	1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 16A, 20A, 25A, 32A	50kA
22×58	500V	40A, 50A, 63A, 80A, 100A, 125A	100kA
22×58	690V	40A, 50A, 63A, 80A, 100A, 125A	125kA

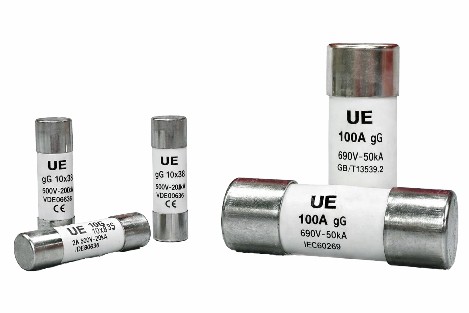

Cylindrical Fuse Link Dimensions

Model	Size	A (mm)	B (mm)	C (mm)	Standard
SE-32F	10×38	10	38	8	IEC 60269-1
SE-125F	22×58	22	58	15	IEC 60269-4

Protection types: Gg (overload & short-circuit), aR (semiconductors), aM (motors). Fuse sizes 10×38mm and 22×58mm. Safety locking mechanism secures fuse carrier in disconnected position.
